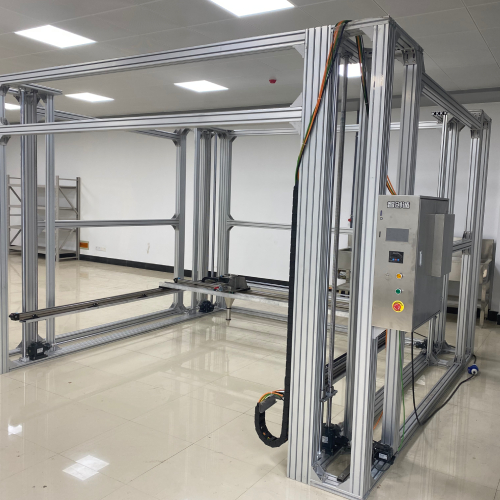

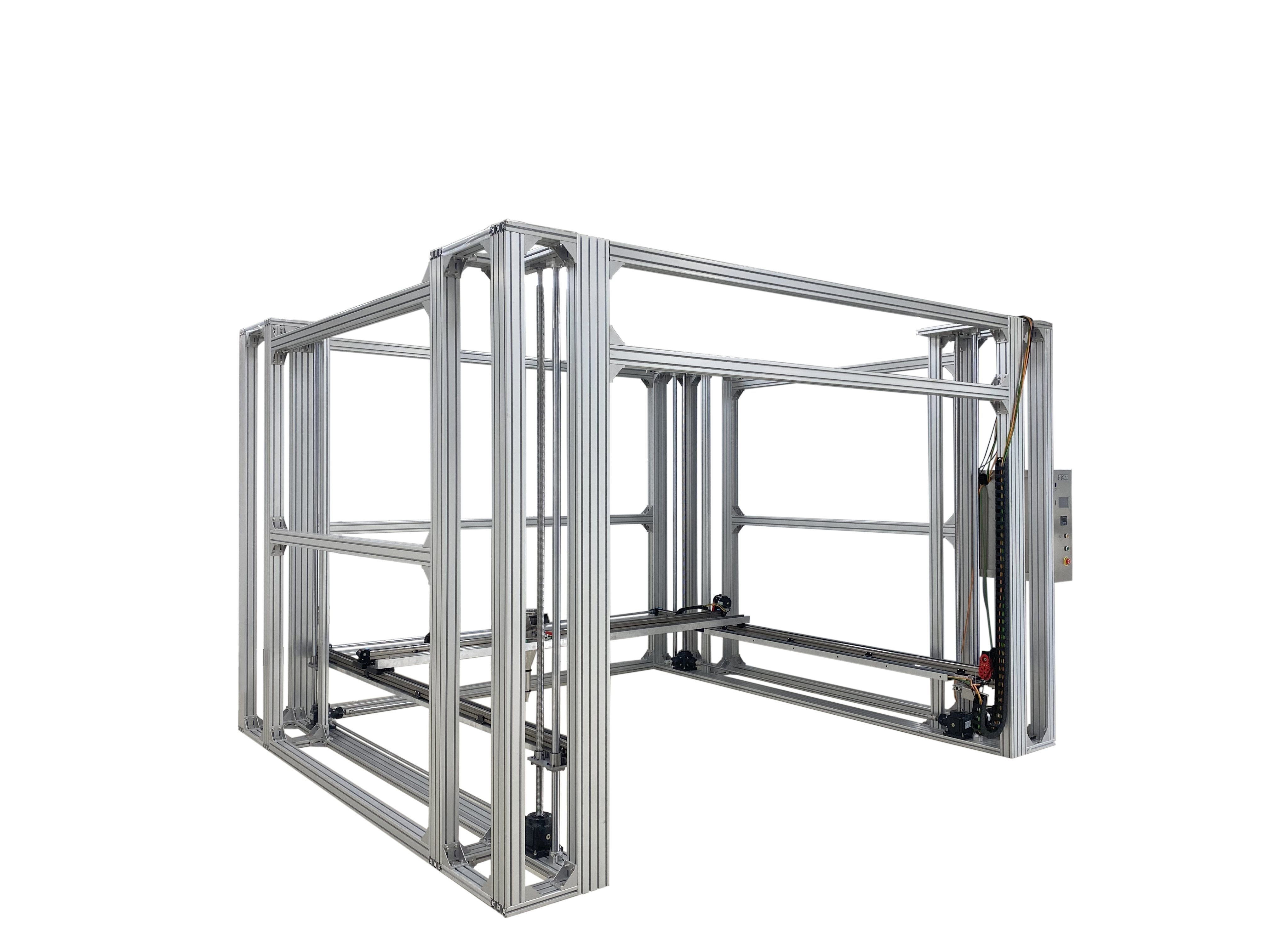

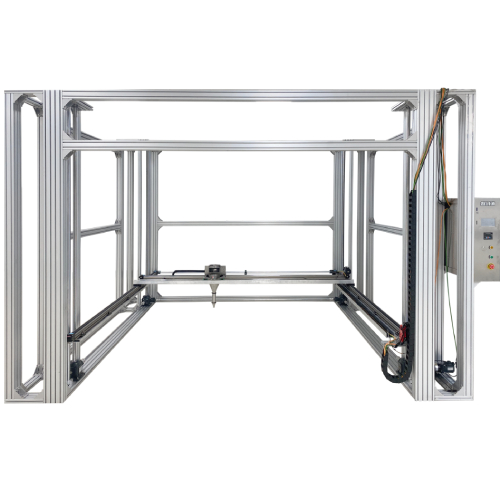

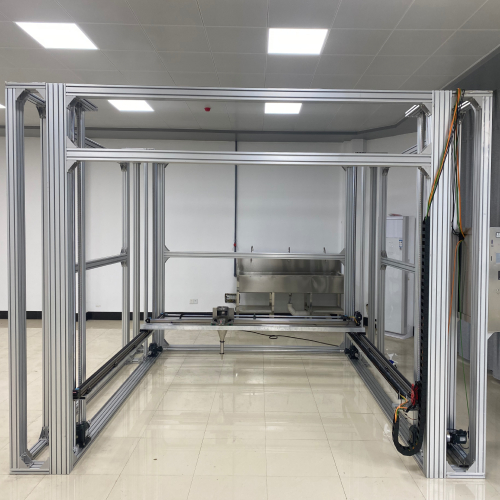

Printer Dimensions

ZCC1215H Printer Dimension: 2330 × 2600 × H 2010 mm

ZCC2020H Printer Dimension: 2700 × 2500 × H 2200 mm

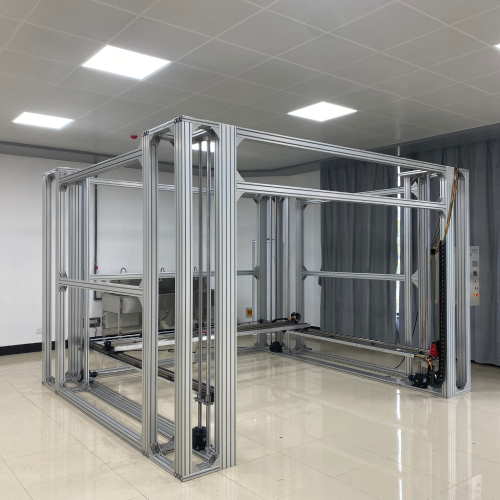

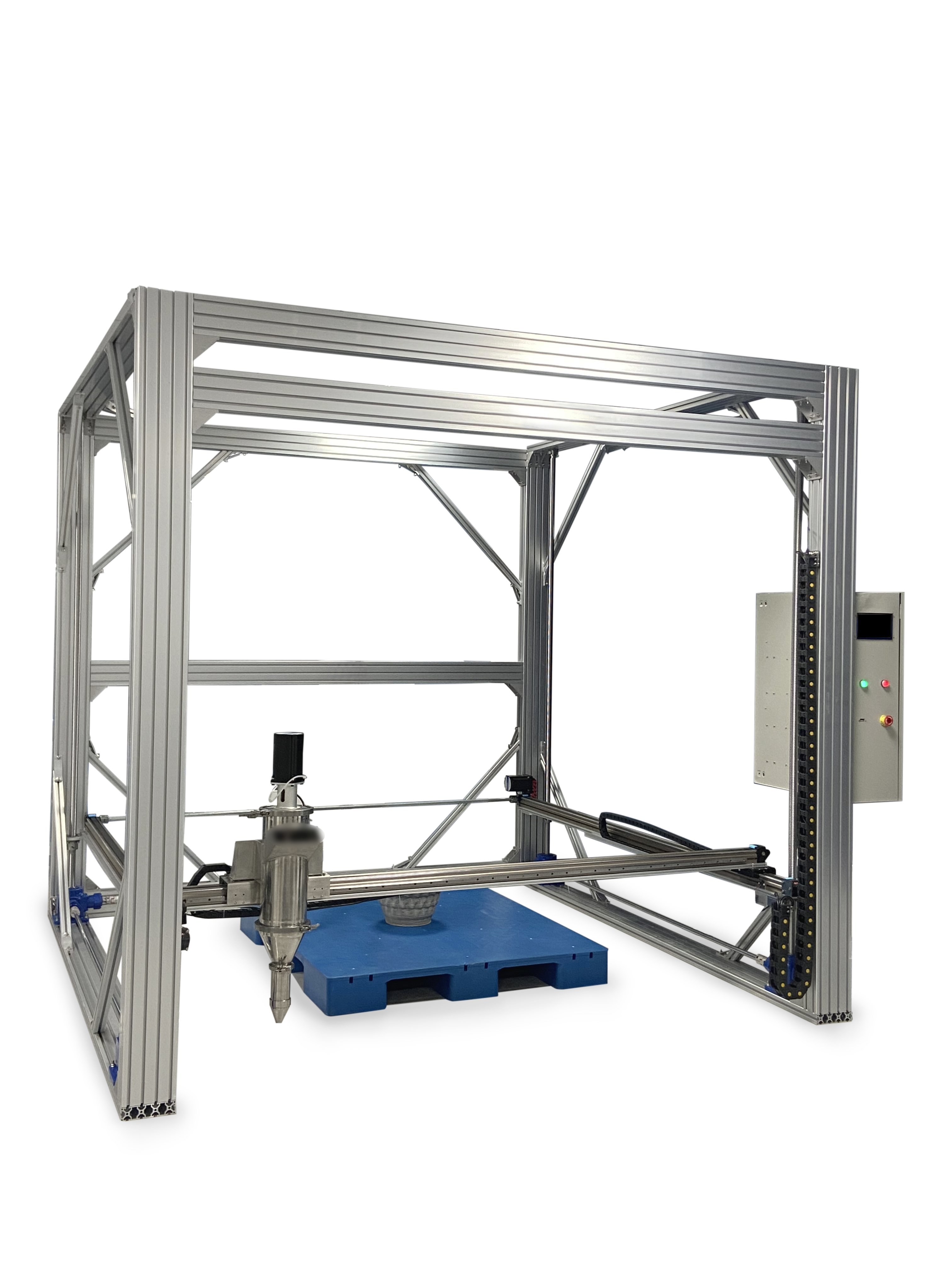

Equipment Support Structure: Four lead screws + bare rods structure

Printer Weight: —

Packing Size: —

Packing Weight: —

Printing Information

ZCC1215H Printing Area: 1400 × 1200 × H 1400 mm

ZCC2020H Printing Area: 2000 × 2000 × 1500 mm

Nozzle Specifications & Configuration:
Supports nozzle diameters of 10.0mm, 15.0mm, and 20.0mm for selection, and is equipped with triangular/rectangular dual-shape nozzles to adapt to printing components with different cross-sections (such as rectangular columns and triangular support structures).

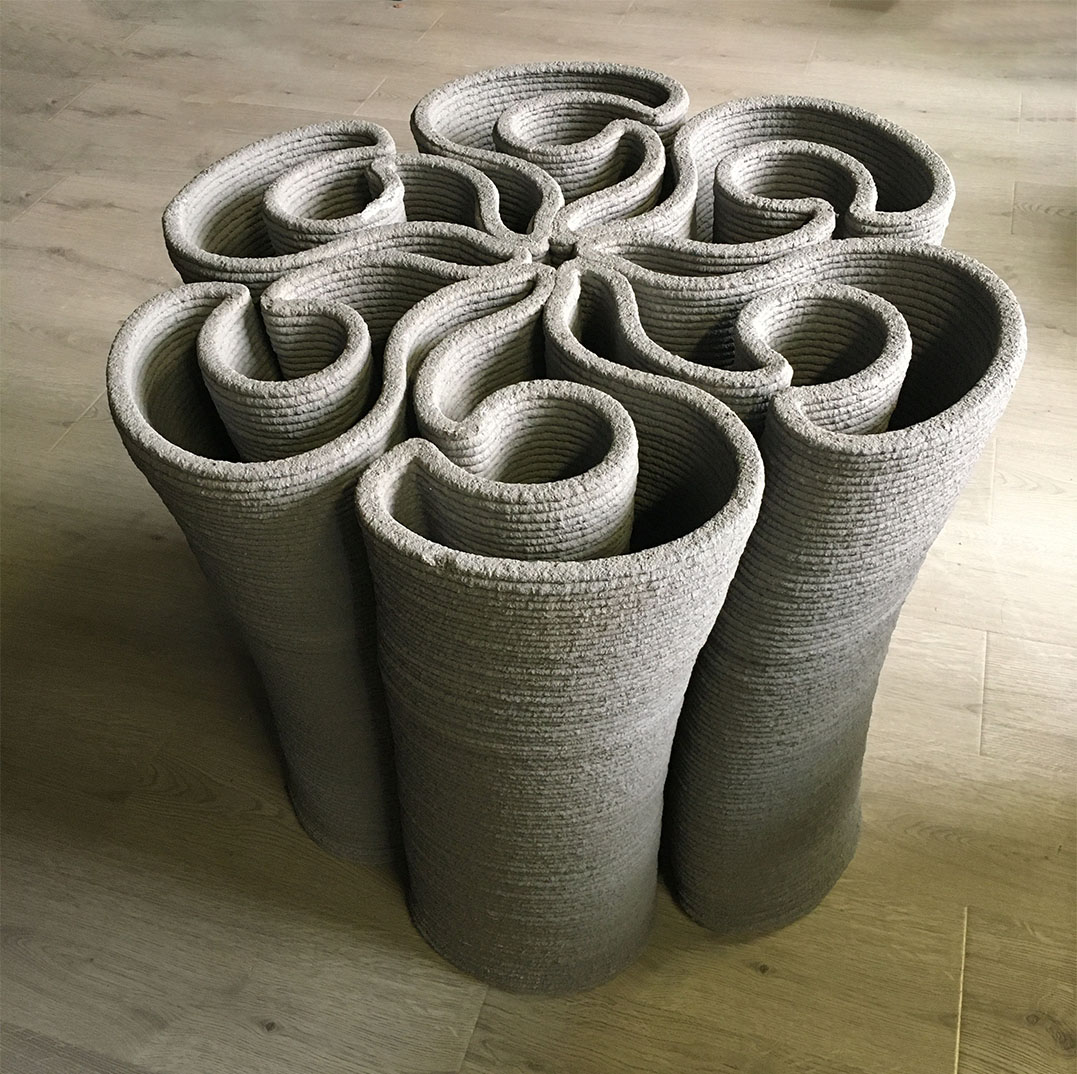

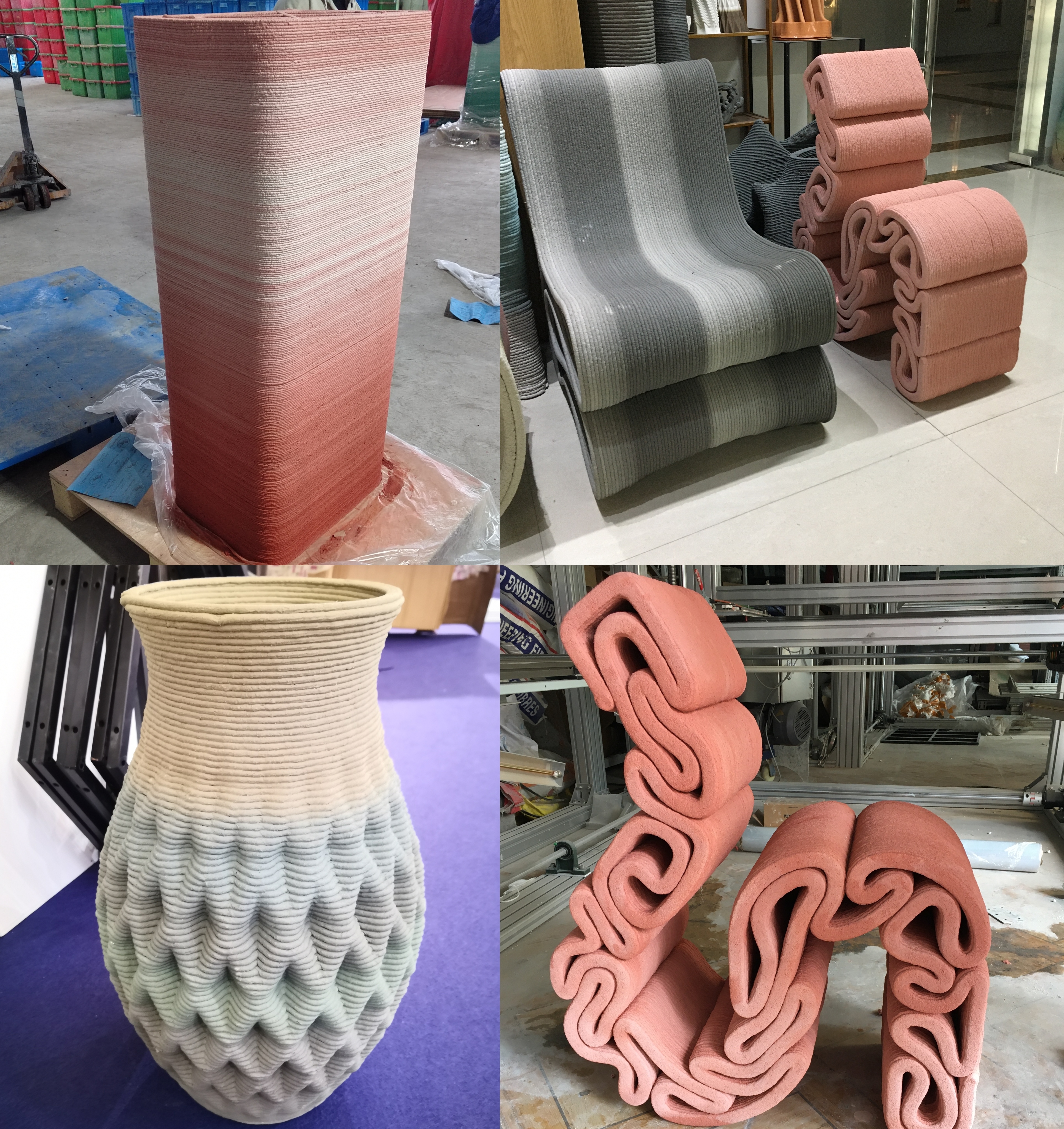

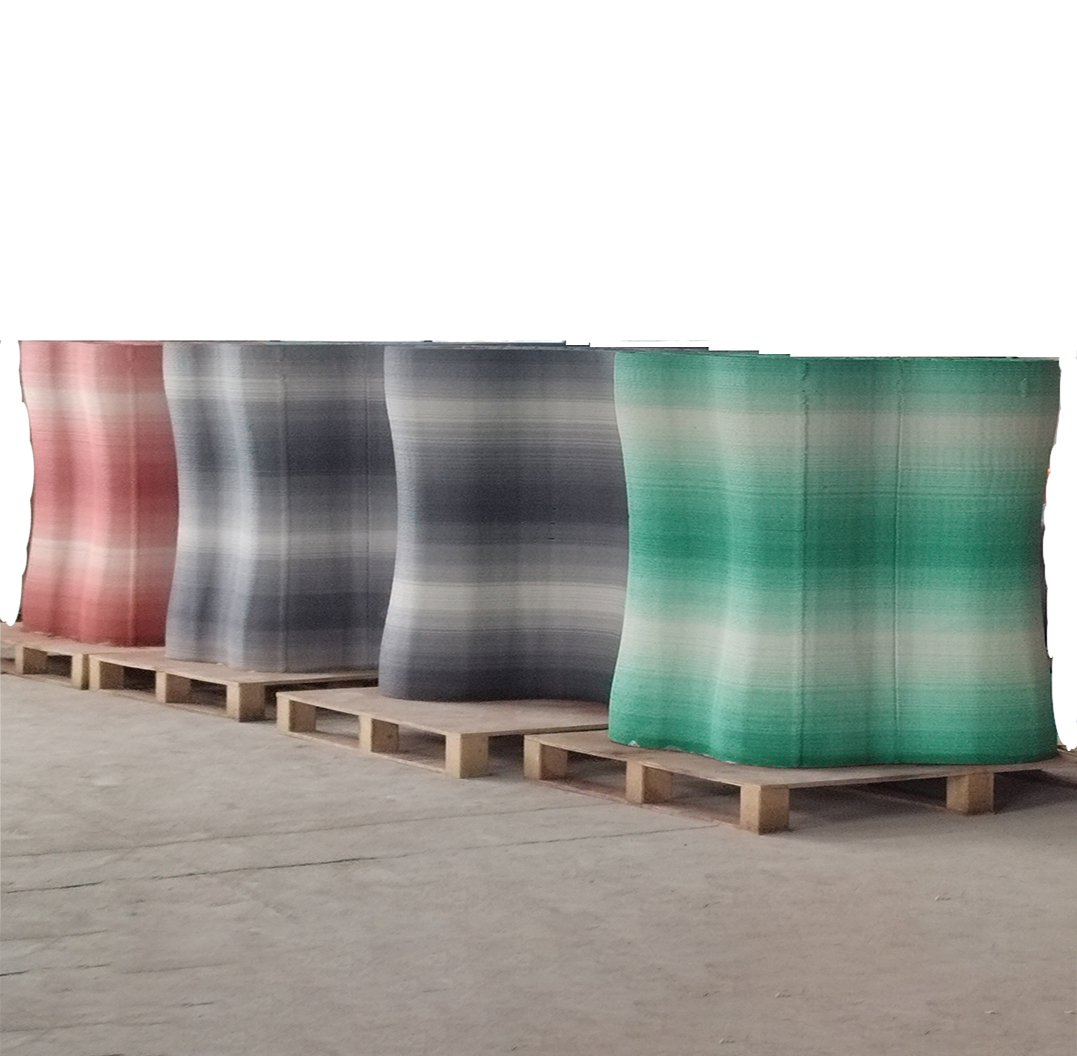

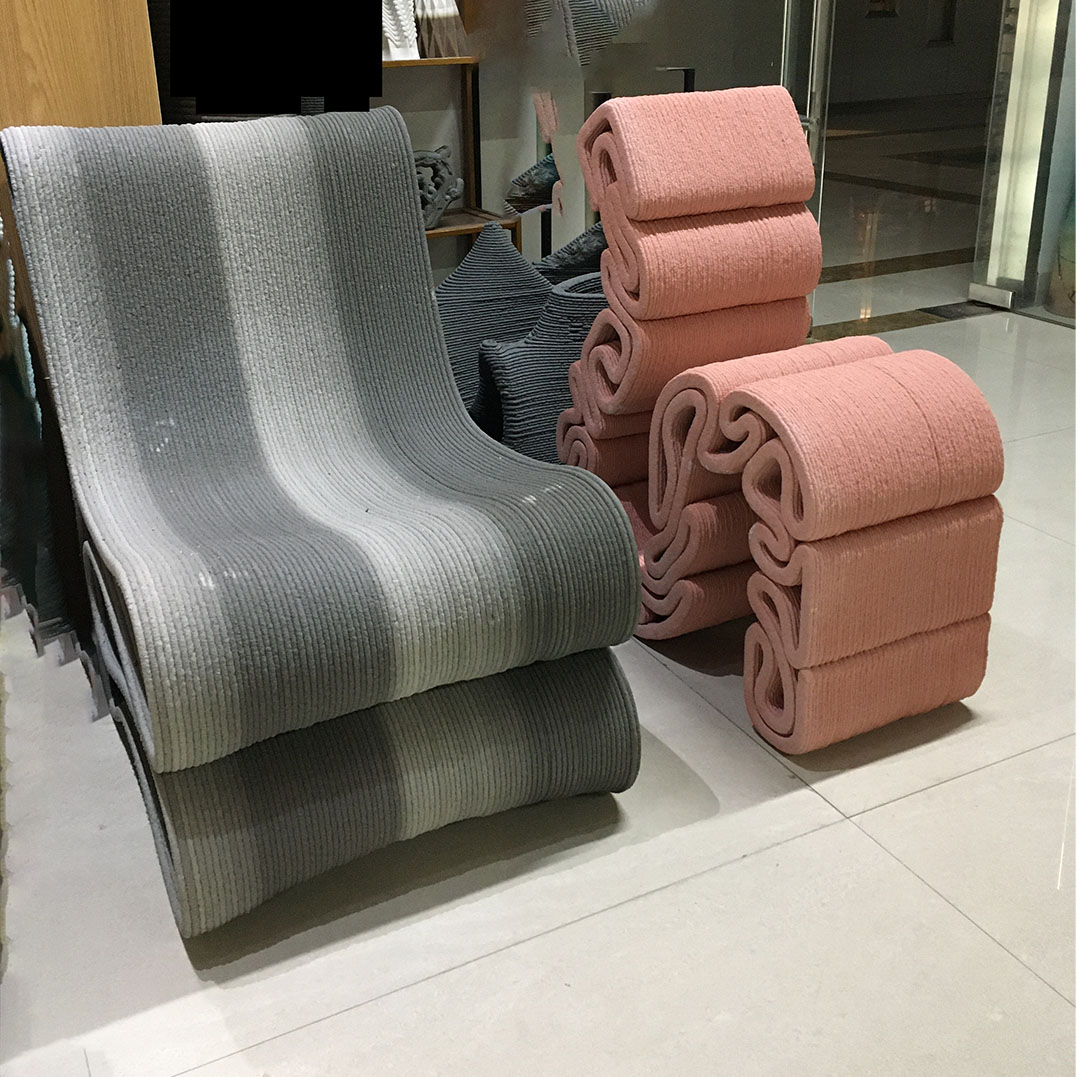

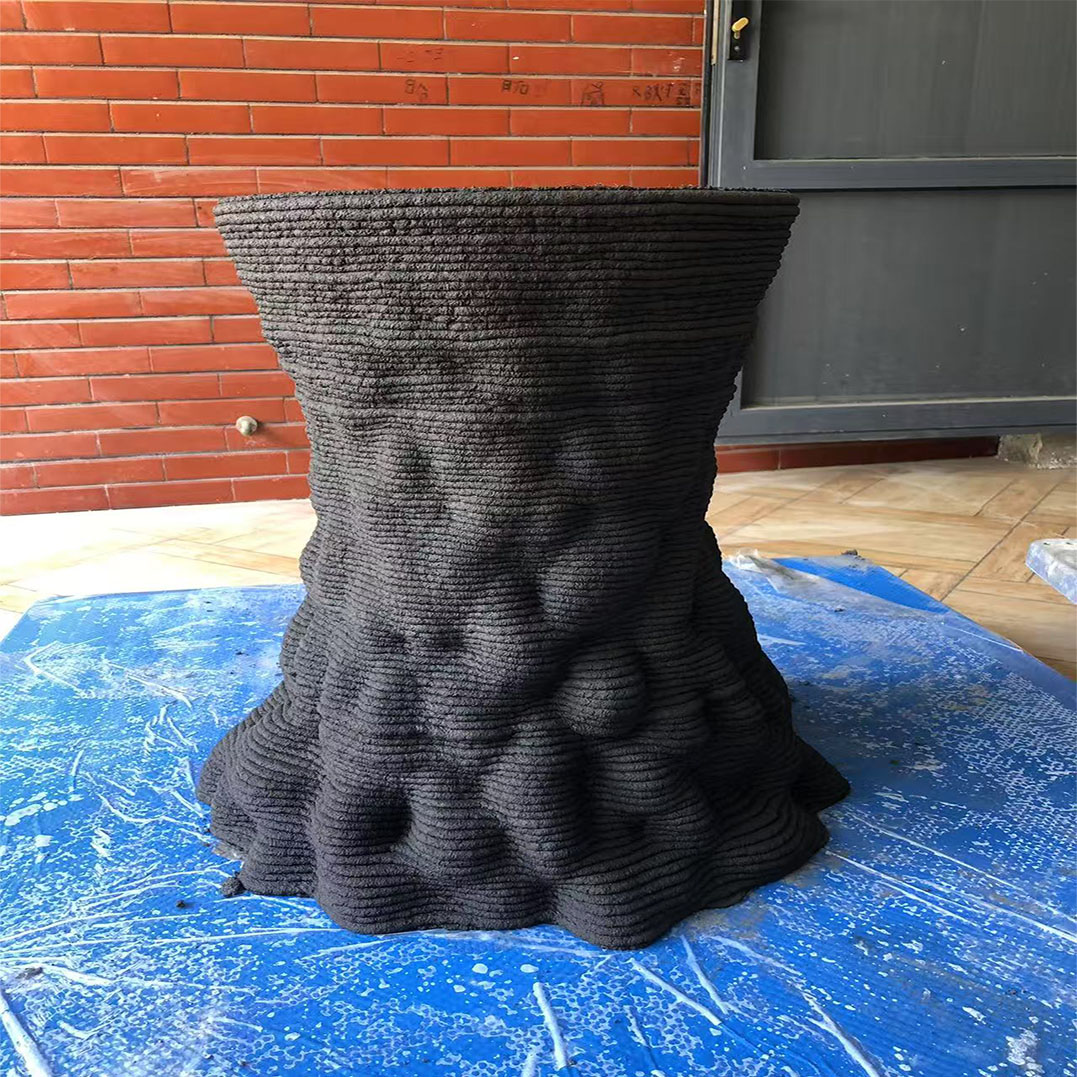

Printing Materials: Soft materials such as concrete and geopolymer, etc.

Forming Layer Thickness: 3.0 – 20.0 mm

Maximum Printing Speed: Up to 350 mm/s

Technology

Motion Control System:
The Z-axis employs a single-motor synchronous control technology for four-axis linkage, with a mechanical transmission accuracy of 0.05-0.1 mm.

Extrusion System Structure:
The screw thread adopts a 3D curved surface screw, instead of sheet welding, which has advantages such as better material conveying

Extruder Capacity:
More than 3L, which can reduce the frequency of frequent feeding and ensure the smoothness of the printing process.

Extruder Maintenance:
The extruder can be quickly disassembled into more than 4 segments, all of which use quick connectors instead of screws for fixing. This design improves cleaning efficiency and reduces maintenance time.

Intelligent Automatic Batching & Mixing System:
Supports one-key automatic weighing and proportioning of powder and liquid materials, equipped with intelligent.

Dual-mode Control of Feeding System:
It supports two feeding modes, manual feeding and pumping, and integrates an intelligent detection module and a PID dynamic

Auxiliary Functions:
Equipped with infrared heating function to accelerate concrete curing and print tall and slender models.

Software

File Extension: STL, OBJ

Operating Systems: Window series / Mac OS / Linux

Slicing Software: cura/S3D(Compatible with third-party software)

Supply

Power Supply: AC 100-240V,360W

Certifications: The whole machine has passed the joint quality inspection of CNAS and CMA, as well as CE and ROHS certifications. Proof documents can be provided.
