| Feed capacity | 45L |
|---|---|
| Discharge capacity | 30L |
| Maximum discharge capacity | 35L |
| Mixing uniformity time | ≤45s |
| Mixing shaft speed | 45±2r/min |
| Motor power | 1.5kw |
| Frequency | 50Hz |
| Power supply voltage | 220V |

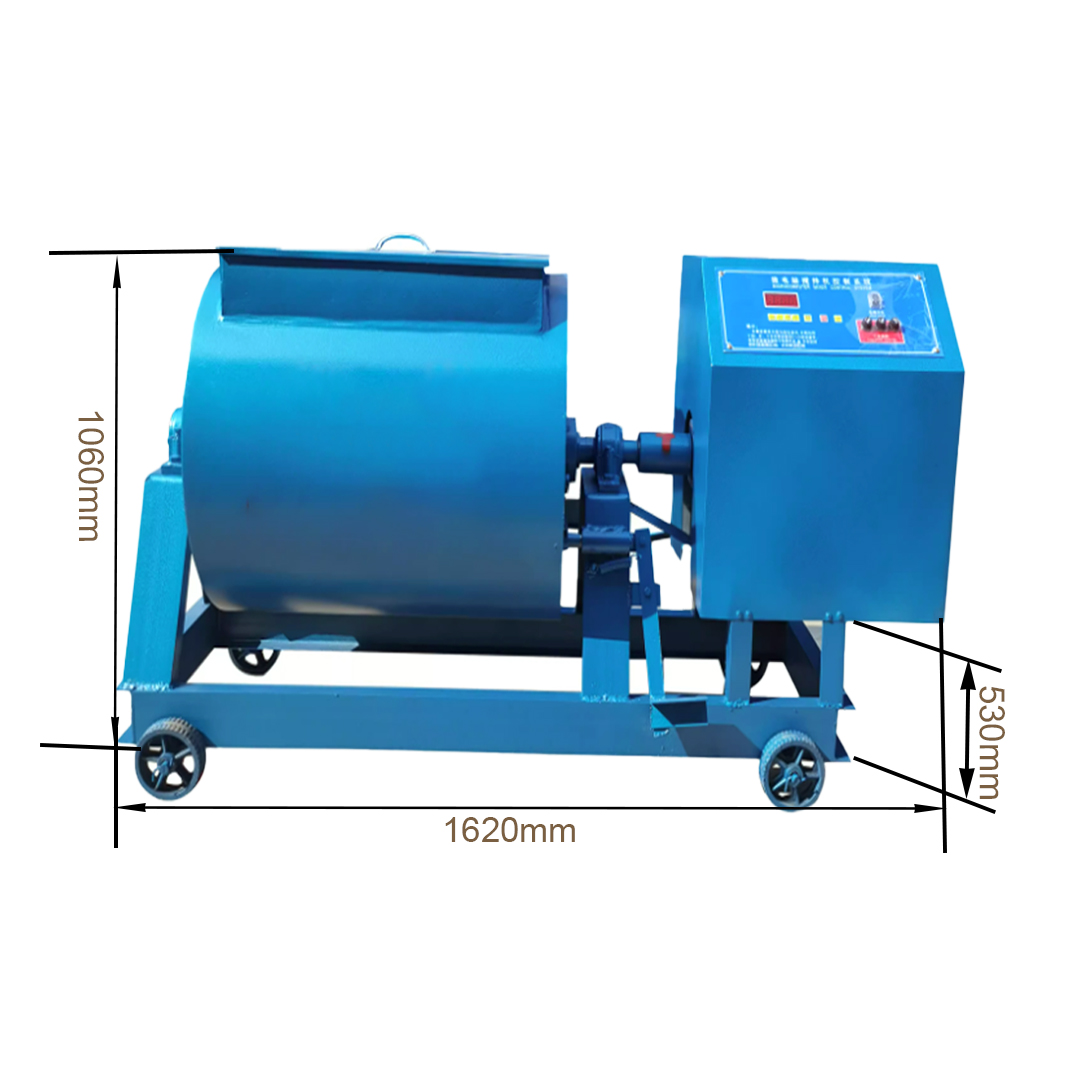

| Overall dimensions | 1620×530×1060 mm |
| Weight | 220Kkg |
Precisely mixes aggregates, cement, and additives to form a uniform concrete slurry, preventing interlayer cracking and insufficient strength in printed components.
Integrates with the 3D printer’s feeding system to supply slurry in real time according to printing speed, avoiding printing faults or component scrapping caused by feeding interruptions.
Adjusts mixing methods and additive dosage to control slurry fluidity and workability, meeting the needs of different printing scenarios such as thin-wall components and large-size structures, ensuring smooth extrusion and stable setting.
Equipped with a screening function to filter raw material impurities and control aggregate particle size (typically ≤ 5mm), preventing nozzle clogging and improving the surface precision of printed components.
The mixer is equipped with a built-in screening function. It filters impurities in raw materials (e.g., large particles, fiber clusters) and controls the maximum aggregate particle size (usually ≤5mm), effectively avoiding nozzle clogging and reducing printer maintenance frequency.
